Point Analysis for Bearing Temps on Lonestar Reaeration Blowers
Date: 2026 03-March 17
Purpose
We are inspecting whether or not bearing temperatures were effectively monitored for the Lonestar Reaeration Blowers
#reaeration #lonestar #blowers
No alarms were triggered for Blower 2 (B-166) at least back to April 2024.
Blower 1, B-165
These points are found on control sheet: "RAS BLOWER 1 (B-165) STEERING", which is on Drop 6, Task 2, Sheet 191
| IDCS | Description |
|---|---|
| TAH1654 | B-165 BRNG TMP HI SPD FRNT |
| TAH1655 | B-165 BRNG TMP HI SPD REAR |
| TAH1656 | B-165 BRNG TMP LO SPD FRNT |
| TAH1657 | B-165 BRNG TMP LO SPD REAR |
| TAH1653 | B-165 HI MTR TMP COIL U |
| TAH1659 | B-165 HI MTR TMP COIL V |
| TAH16510 | B-165 HI MTR TMP COIL W |

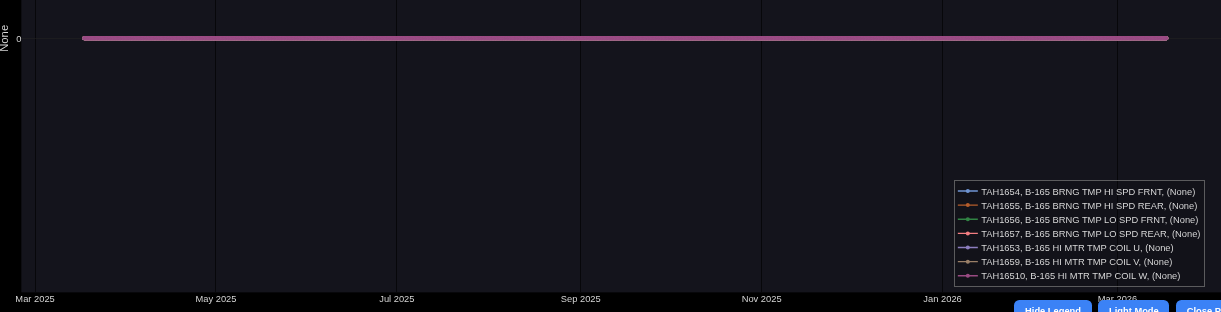

All of these show 0 and "Normal" for the past year, from the EDS and Trend.
--
eds trend tah1654 tah1655 tah1656 tah1657 tah1653 tah1659 tah16510 --days 365 -dp 4000
Blower 1, B-166
These points are found on control sheet: "RAS BLOWER 2 (B-166) STEERING", which is on Drop 6, Task 2, Sheet 193
| IDCS | Description |
|---|---|
| TAH1664 | B-166 BRNG TMP HI SPD FRNT |
| TAH1665 | B-166 BRNG TMP HI SPD REAR |
| TAH1666 | B-166 BRNG TMP LO SPD FRNT |
| TAH1667 | B-166 BRNG TMP LO SPD REAR |
| TAH1663 | B-166 HI MTR TMP COIL U |
| TAH1669 | B-166 HI MTR TMP COIL V |
| TAH16610 | B-166 HI MTR TMP COIL W |
--
All of these show 0 and "Normal" for the past year, from the EDS and Trend.
eds trend tah1664 tah1665 tah1666 tah1667 tah1663 tah1669 tah16610 --days 365 -dp 4000
Blower 1, B-167
These points are found on control sheet: "RAS BLOWER 3 (B-167) STEERING", which is on Drop 6, Task 2, Sheet 195
| IDCS | Description |
|---|---|
| TAH1674 | B-167 BRNG TMP HI SPD FRNT |
| TAH1675 | B-167 BRNG TMP HI SPD REAR |
| TAH1676 | B-167 BRNG TMP LO SPD FRNT |
| TAH1677 | B-167 BRNG TMP LO SPD REAR |
| TAH1673 | B-167 HI MTR TMP COIL U |
| TAH1679 | B-167 HI MTR TMP COIL V |
| TAH16710 | B-167 HI MTR TMP COIL W |
--

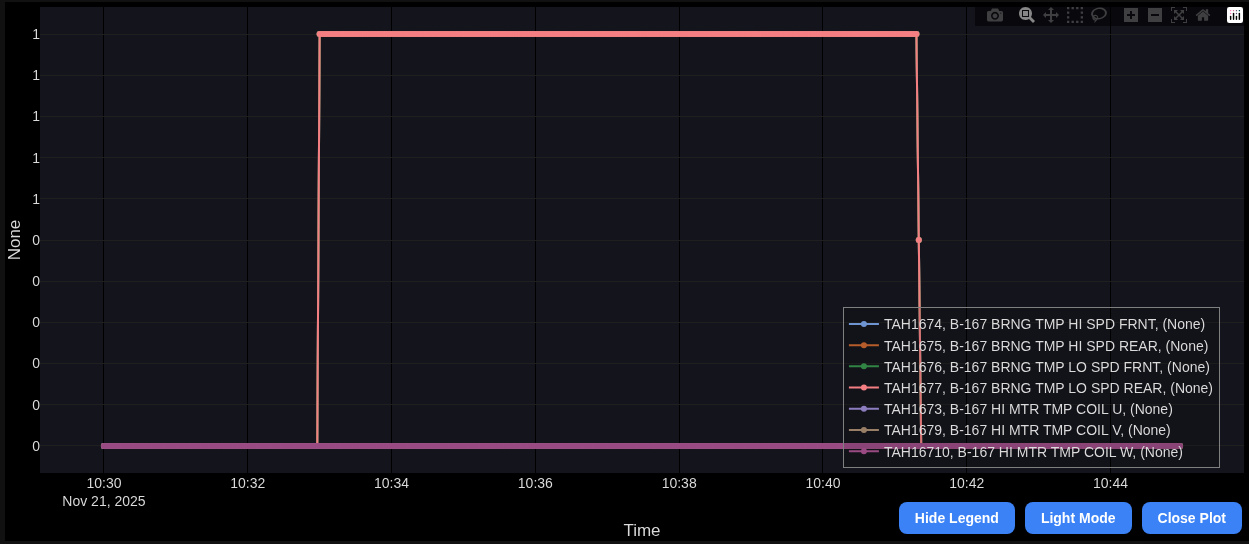

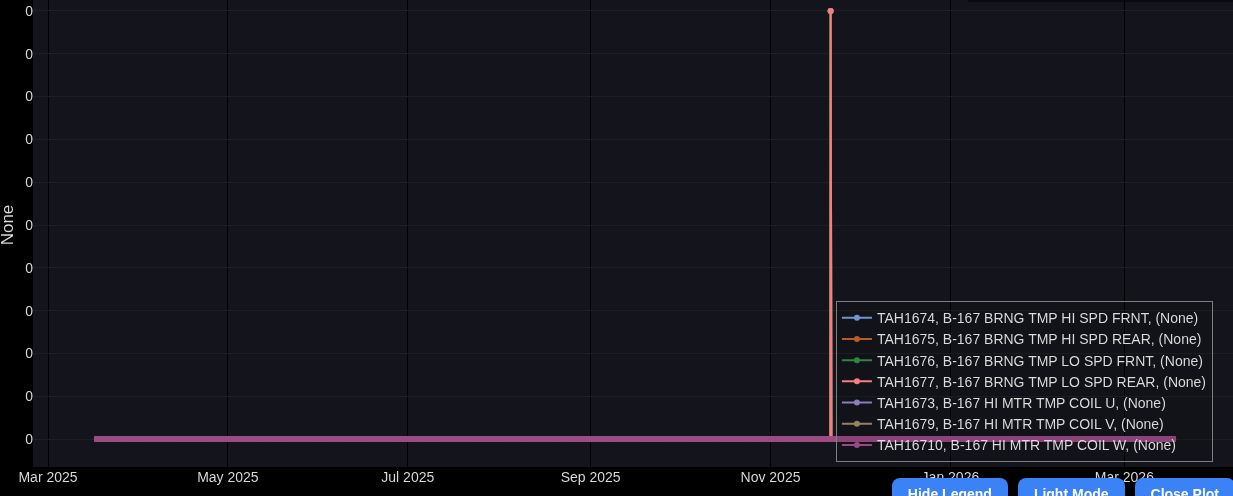

Most of these show 0 and "Normal" for the past year, from the EDS and Trend. All four of the bearing temp sensors for Blower 3 (TAH1674, TAH1675, TAH1676, TAH1677) showed a high value of 1.0 on Nov 21, 2025, for eight minutes, from 10:33 AM to 10:41 AM.
eds trend tah1674 tah1675 tah1676 tah1677 tah1673 tah1679 tah16710 --days 365 -dp 4000
[[reaeration-blowers-tah1677_21Nov2025.html]]

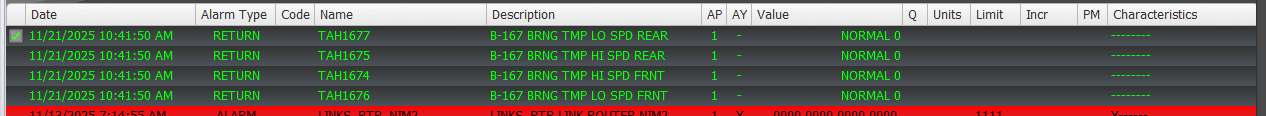

Ovation Alarm App:
Search all historic alarms for these points. None found for Blower 2, only for Blower 3, on Nov 21, 2025.
